Everglades Gas Pipeline Reinforced Galvanized Steel Mesh Length 280m Welded Mesh
Pipeline reinforced galvanized steel mesh Description:

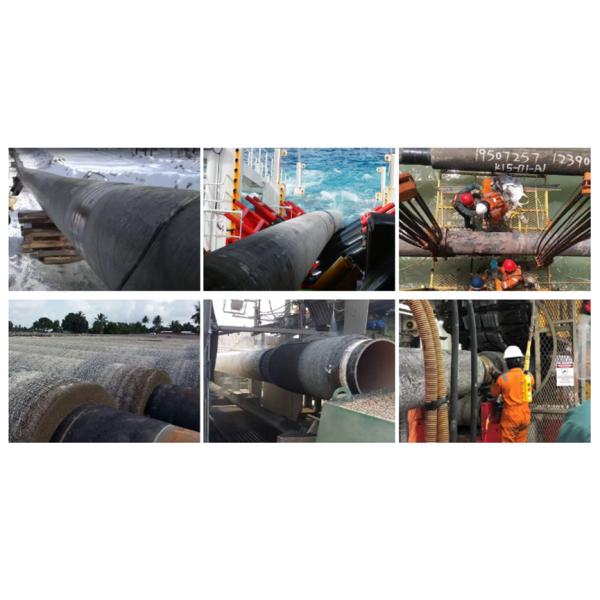

Pipeline Reinforced Welded Wire Mesh is one kind of our Welded mesh product. It is also known as pipeline coating mesh which is widely used as reinforcement on concrete weight coating pipelines for oil and gas. It is designed to provide negative buoyancy and mechanical protection for pipelines in subsea and wet environments. It helps the pipeline sink to the ocean floor and remain in position on the seabed, prevents the pipeline from being damaged during installation and after it is in place.
Galvanized Wire Pipeline Reinforced Mesh Specification:
| Product Name | Pipeline reinforced galvanized steel mesh |
| Material | low carbon galvanized wire |
| Wire diameter | 2.0mm/2.2mm/2.4mm/2.7mm etc. |
| Hole size | 25.4mm x 67mm |
| Hardness Range | 485N/mm2~650N/mm2 |
| Exposed Wire Edge | ≤ 2.5 mm |
| Technique | point welded |
Galvanized Wire Pipeline Reinforced Mesh Export different kinds can choose:
| Ref Number | Main Wire (mm) | Cross Wires (mm) | Roll Width Dimensions (mm) | Roll Length Dimensions (mm) |
| CWC20 | 2.0@25.4 | 2.0@67 | 190.5 | 140/280 |
| CWC22 | 2.2@25.4 | 2.2@67 | 190.5 | 140/280 |
| CWC24 | 2.4@25.4 | 2.4@67 | 190.5 | 140/280 |
| CWC27 | 2.7@25.4 | 2.7@67 | 190.5 | 140/280 |
Galvanized Wire Pipeline Reinforced Mesh Production Process:
Raw materials → wire drawing → hot dipped galvanizing → quality inspection of raw materials → welding processing → packaging → quality inspection → delivery
Galvanized Wire Pipeline Reinforced Mesh Good Features:
Structural Stability: Welded steel mesh enhances concrete bond strength, reducing crack risk by over 75%.
Durability: The surface can be coated with an anti-corrosion coating (such as hot-dip galvanizing or epoxy resin) for corrosion resistance against seawater and industrial wastewater.
Construction Efficiency: Prefabricated production enables fast installation (e.g., processing efficiency for 508mm-1219mm φ pipes reaches 1.0-1.2 km/8 hours).
Galvanized Wire Pipeline Reinforced Mesh Application:
• Water and wastewater pipelines
• Chemical processing pipelines
• River bottom gas & oil pipelines
• Everglades gas pipelines
• Subsea gas & oil pipelines
Galvanized Wire Pipeline Reinforced Mesh Packing and Shipping:
Product Packaging:
Our Pipe coating mesh come in Bundle or pallet that is easy to load and unload.
Shipping:
We offer free shipping on all orders of Pipe coating mesh. Our standard shipping method is ground shipping. Orders typically ship within 1-3 business days and arrive within 5-7 business days. Expedited shipping options are available for an additional cost.
